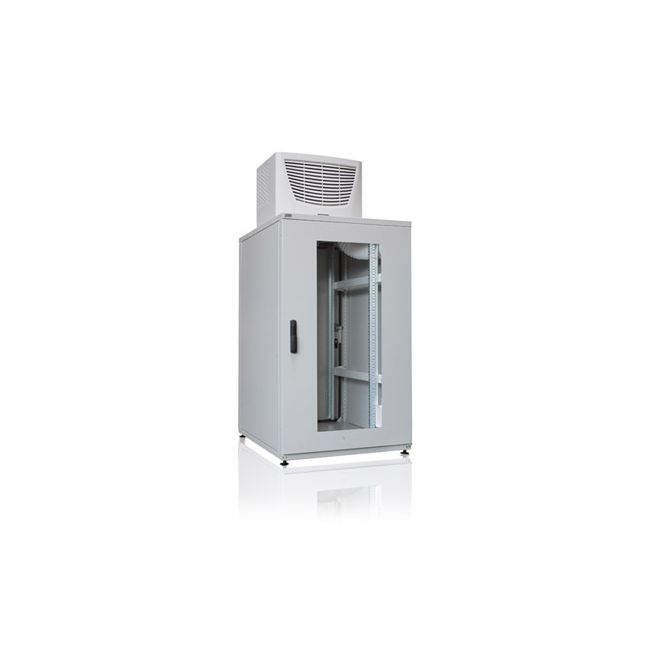

19" Server Cabinet 25 U with top air A/C unit 2000 W, 800x1000x1200 +415

19" Server Climate Cabinet with air conditioning unit with 2000W

• Glazed front door
• Full rear door
• Rotary lever handles lockable
• Removable side panels
• Stable depth-adjustable 19" mounting angles 4 x 25 U
• Max. 19" mounting depth 710 mm
• Cable entry in a base module
• Earthing kit
• Leveling feet
• Air Ducts for increased airflow control
• Roof air conditioner 2000 W
• Operating voltage Volt 230 Hz, 50-60
• Pluggable terminal strip for power connection
• Powder coating RAL7035 light gray

Note to the site :

• The location and thus the arrangement of the heat must be selected so that good ventilation is ensured.
• Depending on the location of the system of distance on several directly mounted adjacently to the wall should be at least 200 mm.
• The refrigerator must be installed and operated in a horizontal position (max. deviation: 2 °).
• The site must be free from excessive dirt and moisture.
• The ambient temperature must not be higher than 55 ° C.
• A condensate drain must be enabled.
• The network connection specifications on the nameplate of the unit must be ensured.

Roof-mounted cooling unit 2000W

• Rated voltage 230V AC
• cooling capacity L35/L35: 2000W
• with Multi-Controller
• Power consumption L35/L35: 1049W
• Power consumption L35/L35: 6,2A
• inrush current L35/L35: 16,8A
• integrated condensate evaporation
• ambient temperature range: +15...+55° C
• refrigerant: 750g R134a
• Protection class: IP 54 towards the control cabinet when used as intended
• Protection class: IP34 against the environment when used as intended
• Housing: galvanized sheet steel
• Hood: powder-coated
• Color of the hood: RAL7035
• Weight: 46
