VideoSplitter HDMI 4K60
-
Inkl. 19% MwSt. ,
exkl. Versandkosten

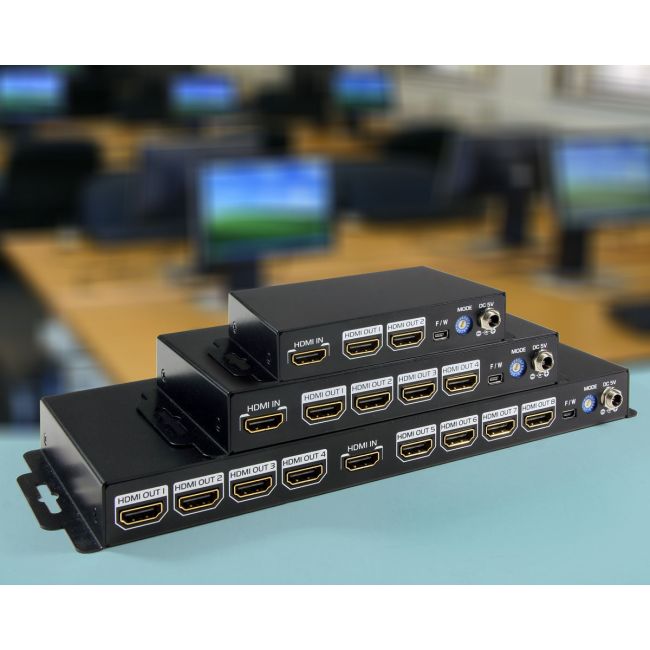

HDMI 4K60 2×1, 4×1, 8×1 Video Splitter
This versatile 4/8-port HDMI Video Splitter is ideal for use in classrooms, boardrooms, trade shows and exhibition displays, in fact anywhere where you need to easily distribute a 4K video signal across multiple monitors.
The product supports HDMI video up to 4K@60 frames per second, and delivers up to 10.2Gbps video bandwidth. It's very simple to set-up and operate, just connect the HDMI input/output cables and power on the Video Splitter for a stunning HD video presentation.
Artikelnummer
VideoSplitter HDMI 4K60
- Distributes a single HDMI video signal to multiple displays
- Three models with either 2, 4, or 8 HDMI outputs
- HDMI 2.0a compliant
- HDCP 2.2 and 1.4 compliant
- Video capability 4K2K@60 4:4:4 8bits and HDR 4K2K@60 4:2:0 10bit
- Video bandwidth: 18Gbps
- Video supports all 3D modes, xvYCC, x.v.Color, and Deep Color
- Audio support includes Dolby Digital, DTS-HD, and Dolby TrueHD audio
- Rotary dial to setup built-in EDID or EDID learning from display
- Mini-USB connector to update firmware
- Cascading feature to increase number of output displays
- Built-in surface mounting bracket
SPECIFICATIONS
| Dimensions (W x D x H) |
8-port: 9.6" x 3.9" x 1" (243 x 98 x 25 mm)4-port: 6.1" x 3.3" x 1" (154 x 83 x 25 mm)2-port: 4.4" x 2.5" x 1" (113 x 62.5 x 25 mm) |
| Weight | 8-port: 0.4 lb (0.88 kg)4-port: 0.3 lb (0.583 kg)2-port: 0.2 lb (0.463 kg) |
| Power | 90-240 VAC 50-60HzExternal adapter, +5VDC8-port/4-port: 4A2-port: 2A8-port: 20W4-port: 15W2-port: 10W |
| Resolution | HDMI 2.0a compliantHDMI: 3840x2160: 24-bit RGB 4:4:4HDMI: 3840x2160: 36-bit YCbCr 4:2:0 |
| Distance | Video: 10 feet (3m) |
| Connectors | Video Input: HDMI Type A femaleVideo Output: 2, 4, or 8 HDMI Type A FemalePower: Screw-in barrel jack |
| Controls | Power: Red LEDVideo ready: Green LEDRotary Dial: EDID mode |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–90%, non-condensing |
| Artikelnummer | VideoSplitter HDMI 4K60 |
|---|
