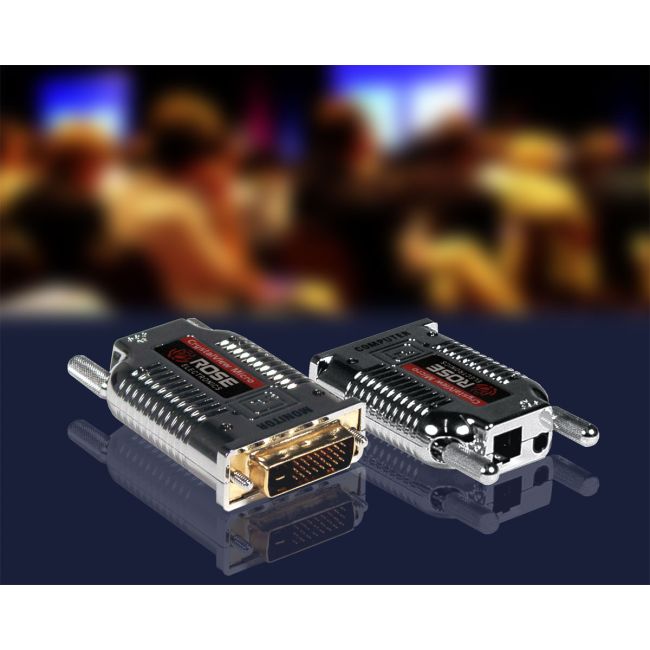

CrystalView DVI Micro
-
Inkl. 19% MwSt. ,
exkl. Versandkosten
Compact Fiber Extender • Single-link DVI
CrystalView DVI Micro Fiber is a compact extender combining efficiency and functionality into an affordable solution. Specifically designed for a single SC type multi-mode optical fiber, CrystalView DVI Micro Fiber will extend a DVI video signal to a remote monitor up to 3,300 feet away. Video resolution reaches a maximum of 1920 x 1200, but is contingent on distance with signal degradation as it increases.
The following can be used as a reference guide for resolution capabilities:
- 1920 x 1200 up to 984 feet
- 1600 x 1200 up to 1,650 feet
- 1280 x 1024 up to 3,300 feet
This device is plug-and-play with easy installation and auto-detect EDID information.
Artikelnummer
CRK-T1DFMDM
- Miniature style directly connects to DVI connector
- Video resolution up to: 1920 x 1200 at 1000 feet (300m)
- SC type connector on unit connects to a single multi-mode fiber
- Auto-detect EDID information
SPECIFICATIONS
|
Dimensions (W x D x H) |
1.57" x 2.61" x 0.59" (40 x 66 x 15 mm) |
| Weight | 0.6 lb (0.25 kg) |
| Power | Transmitter: Powered by computer DVIReceiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 2AStandard: 5W |
| Distance | 1920 x 1200: 1000' (300m)1600 x 1200: 1650' (500m)1280 x 1024: 2,300' (700m) |
| Connectors | Transmitter:Single-link DVI video: DVI male direct plug-inFiber: Single multi-mode fiber with SC connectorReceiver:Single-link DVI video: DVI male direct plug-inFiber: Single multi-mode fiber with SC connector |
| Environment | Operating temperature: 32°F–122°F (0°C–50°C)Storage temperature: -4°F–158°F (-20°C–70°C)Relative humidity: 20%–80%, non-condensing |
| Artikelnummer | CRK-T1DFMDM |
|---|
